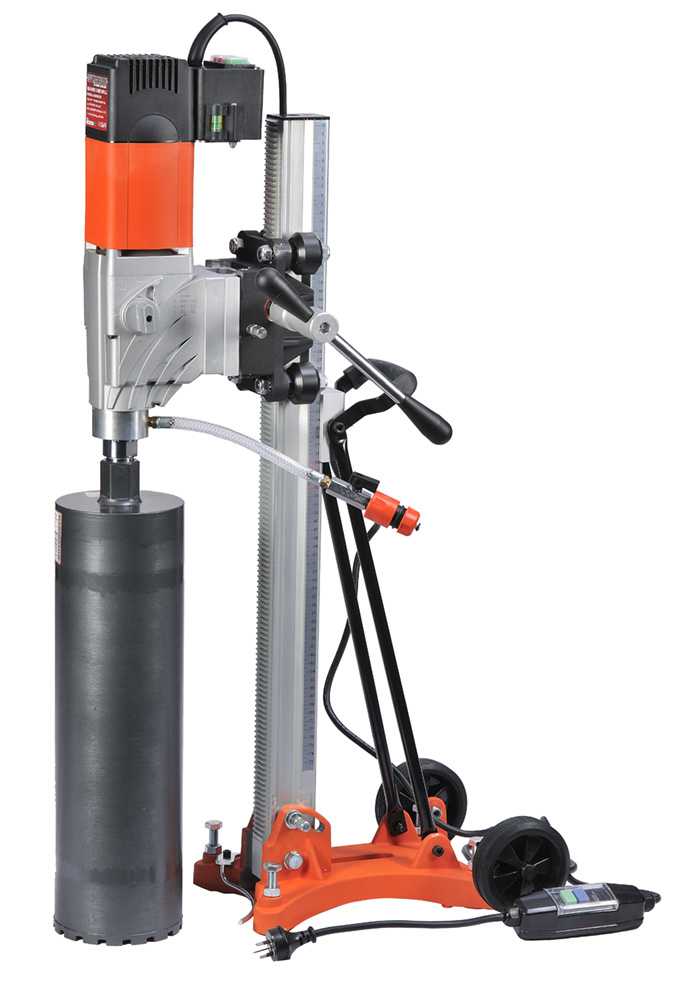

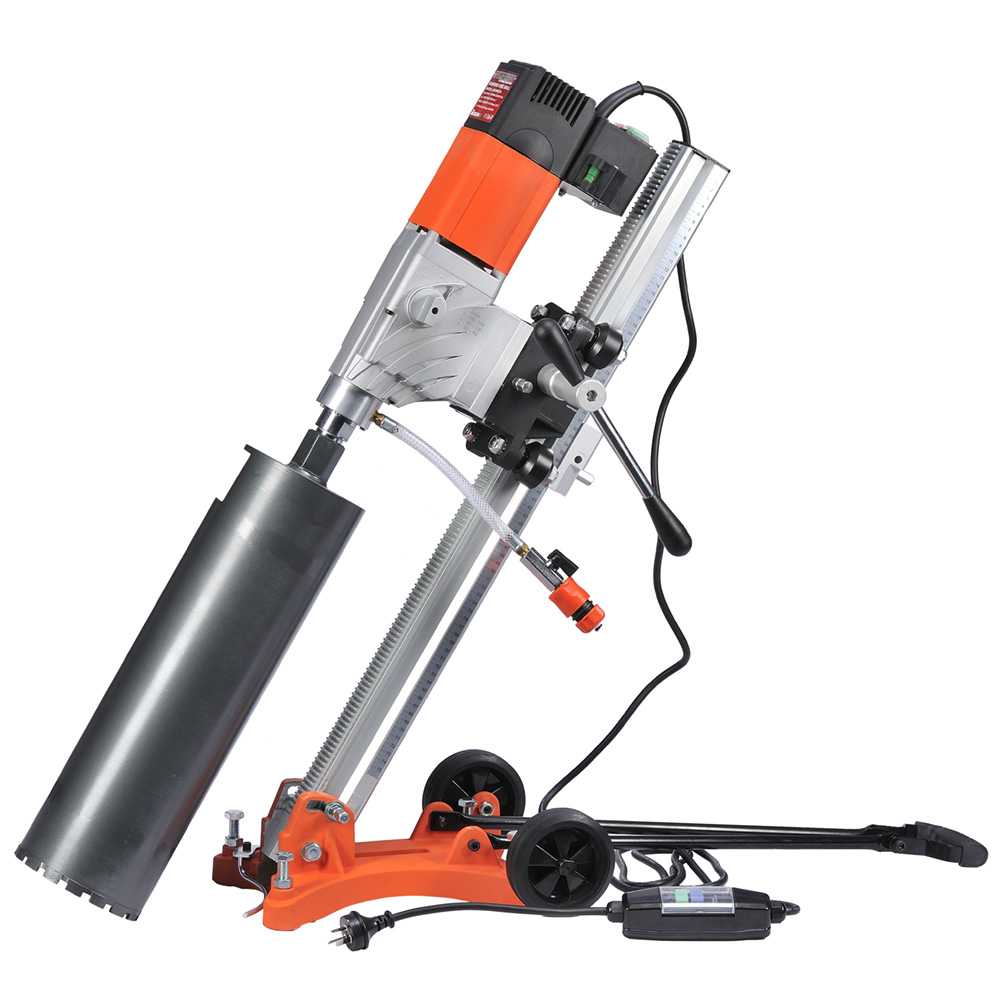

Core Drilling Machine 2200 Watt Rig Mounted 3 Speed 1.1/4 UNC Spindle
| Part Number: | AGCDM250 |
| Brand: | Dymaxion |
| Barcode: | 9333716000035 |
| Packaging: | Freight carton |
| No Load Speeds (RPM): | 650 / 1000 / 1250 |
| Variable Speed: | No |
| Collar Diameter (mm): | - |
| Suits: | PCDRIG and PCD1500SS mounting rigs. |
About this item:
- Maximum 250mm diameter core drill in reinforced concrete.
- Built in bubble level, water swivel and RCD protection.
- Heavy duty machine suitable for coring through rebar and mesh embedded concrete.
- Designed for the toughest coring operations thick concrete over 300mm thick.
- Angle adjustment.
- Die cast aluminium base and extruded aluminium mast.
- Base includes wheels.
- Four levelling bolts are widely spaced for maximum stability.
- Fitted with stabilising back stays.
- Four nylon guide wheels firmly secure the machine bracket to the mast and allow for smooth travel.
